Technical Specifications

Multiplaz 3500 User Manual

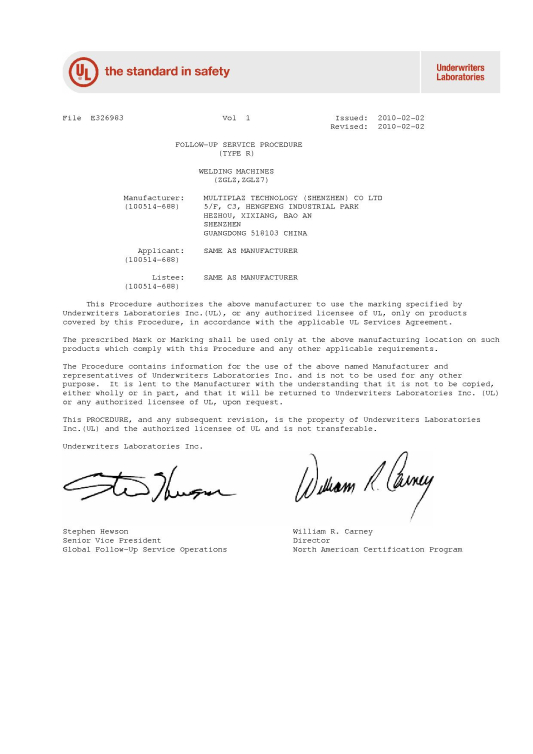

UL and CUL USA and Canada
Low Voltage Directive (TÜV)
EMC Declaration (CE)
Eurasian Conformity (EAC)
China Compulsory Certification (CCC)

Technical Specifications of the Multiplaz 3500

Process liquid for cutting and welding *   Water
Process liquid for welding and soldering **   Water-Alcohol
Electrical Supply (single phase) V 100 - 253
Supply Frequency Hz 50 - 60
Maximum Power Requirement for network voltage 220 V kWt 3.5
Maximum Power Requirement for network voltage 110 V kWt 2.0
Welding type Plasma and plasma arc
Plasma flame temperature °F (°C) 14400 (8000)
Cutting capabilities (regular steel) inch (mm) up to 3/8 (10)
Welding capabilities (regular steel) inch (mm) from 1/64 (0.4) up to 2 (50)
Idle Voltage V 68
Time of operation with one torch filling min 20 - 30
Torch Steam Pressure bar (pci) 0.4 - 1.2 (5.7 - 17)
Duty cycle % 8
Power Unit Dimensions (l x h x w) inch 15 x 7 1/2 x 5 1/2
  mm 380 x 190 x 140
Power Unit Weight lbs (kg) 17 1/2 (8)
Torch Dimentions, (l x h x w) inch 8 x 7 1/2 x 2 1/2
  mm 205 x 194 x 60
Torch Weight (dry) lbs (kg) 2 (0.9)
Power Cable Length ft (m) 6 1/2 (2)
Torch Cable Length ft (m) 6 1/2 (2)
